Fatty liver disease
The Background:
There is a recent publication: The Effect of Liv.52 DS in Metabolic Dysfunction-Associated Fatty Liver Disease (MAFLD): A Pilot, Randomized, Double-Blind, Placebo-Controlled, Clinical Study
The publication is available via (NIH)[https://pubmed.ncbi.nlm.nih.gov/40765845/].
In this publication a pair of figures has been attached, that is the basis of the discussion on graphic design principles.
Data set:
- 47 eligible subjects randomised 2:1 to active treatment or placebo
- LSM score measured at baseline and end of study after 6 months
- State of steatosis
- patient level data was simulated to match the displayed results
The Challenge:
Within the publication the below plots were present. This months challenge was to improve a plot or find a better way to visually present the data.

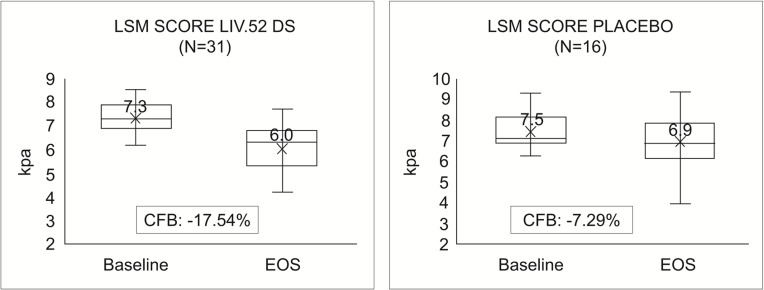

Mean Change in LSM values (kPa). Comparisons between the groups were performed using unpaired t-tests. Data were collected after six months of randomization.

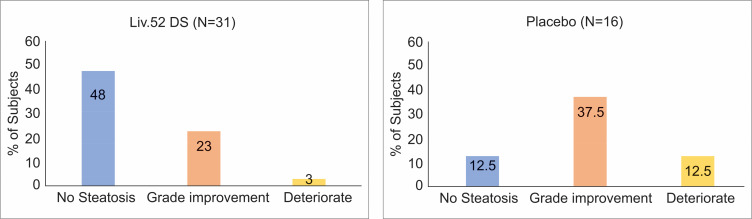

Comparison of Overall Improvement in Steatosis at the end of study.
A description of the challenge can also be found here.
A recording of the session can be found here.
Visualisation
Version 1 of an interactive visualisation app
Code

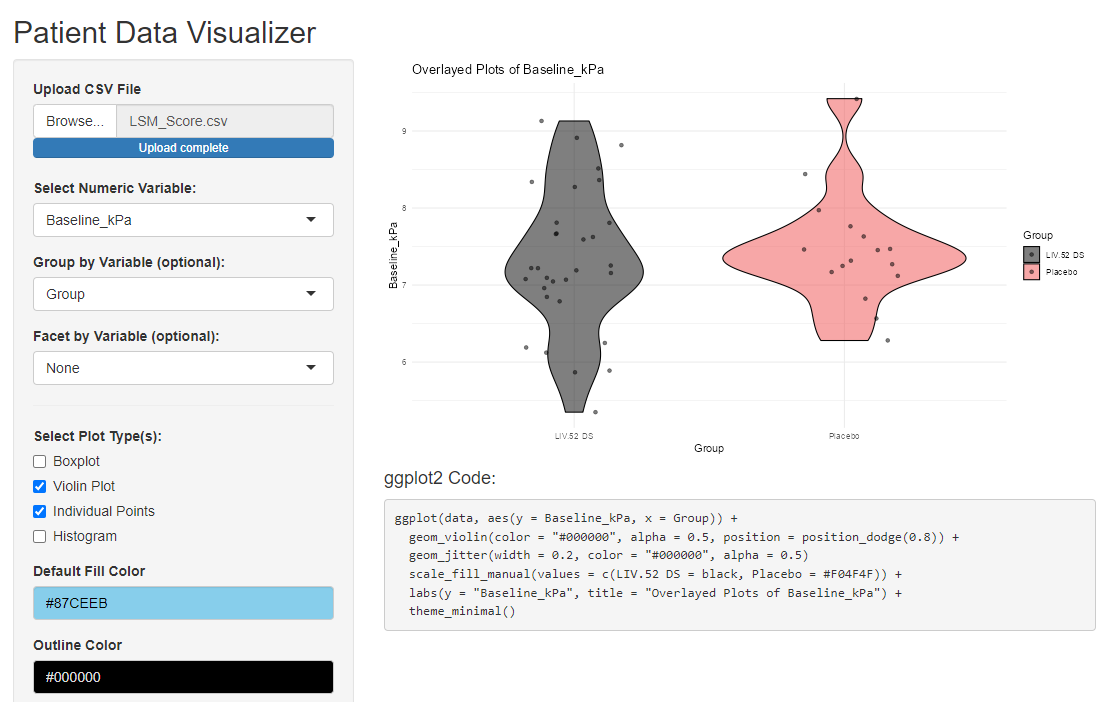

Version 1 of an interactive visualisation app
This R Shiny app was created purely by ChatGPT using this prompt.
# Load required libraries
library(shiny)
library(ggplot2)
library(dplyr)
library(colourpicker)
# UI
ui <- fluidPage(
titlePanel("Patient Data Visualizer"),
sidebarLayout(
sidebarPanel(
fileInput("file", "Upload CSV File", accept = ".csv"),
uiOutput("varSelectUI"),
# Grouping and Faceting selectors
uiOutput("groupSelectUI"),
uiOutput("facetSelectUI"),
hr(),
# Plot Type Selection (multiple options can be selected)
checkboxGroupInput("plot_type", "Select Plot Type(s):",
choices = c("Boxplot" = "boxplot",
"Violin Plot" = "violin",
"Individual Points" = "points",
"Histogram" = "histogram")),
# Color options
colourInput("fill_color", "Default Fill Color", value = "skyblue"),
colourInput("outline_color", "Outline Color", value = "black"),
# Color pickers for each group level (to be rendered dynamically)
uiOutput("group_color_ui"),
# Theme Selection
selectInput("ggtheme", "Select Theme:",
choices = c("Minimal" = "theme_minimal",
"Grey" = "theme_grey",
"Classic" = "theme_classic",
"Light" = "theme_light",
"Dark" = "theme_dark",
"BW" = "theme_bw"),
selected = "theme_minimal")
),
mainPanel(
plotOutput("boxPlot"),
h4("ggplot2 Code:"),
verbatimTextOutput("ggplotCode")
)
)
)
# Server
server <- function(input, output, session) {
# Reactive expression to read the uploaded CSV
uploaded_data <- reactive({
req(input$file)
tryCatch({
read.csv(input$file$datapath)
}, error = function(e) {
showNotification("Error reading file. Please upload a valid CSV.", type = "error")
NULL
})
})
# Variable selection UI
output$varSelectUI <- renderUI({
data <- uploaded_data()
req(data)
num_vars <- names(data)[sapply(data, is.numeric)]
selectInput("selected_var", "Select Numeric Variable:", choices = num_vars)
})
# Grouping variable selection
output$groupSelectUI <- renderUI({
data <- uploaded_data()
req(data)
cat_vars <- names(data)[sapply(data, function(x) is.factor(x) || (is.character(x) && n_distinct(x) < 20))]
if (length(cat_vars) > 0) {
selectInput("group_var", "Group by Variable (optional):",
choices = c("None", cat_vars), selected = "None")
}
})
# Faceting variable selection
output$facetSelectUI <- renderUI({
data <- uploaded_data()
req(data)
cat_vars <- names(data)[sapply(data, function(x) is.factor(x) || (is.character(x) && n_distinct(x) < 20))]
if (length(cat_vars) > 0) {
selectInput("facet_var", "Facet by Variable (optional):",
choices = c("None", cat_vars), selected = "None")
}
})
# Render color pickers for each group level if group_var is selected
output$group_color_ui <- renderUI({
data <- uploaded_data()
req(data)
# Only show color pickers if a grouping variable is selected
if (input$group_var != "None") {
group_levels <- unique(data[[input$group_var]])
colorPickers <- lapply(group_levels, function(level) {
colourInput(paste0("color_", level),
label = paste("Color for", level),
value = sample(colors(), 1)) # Generate a random color for each level
})
do.call(tagList, colorPickers) # Return all color pickers as a list
}
})
# Generate color map based on the group variable and user selections
generate_color_map <- reactive({
data <- uploaded_data()
req(data)
if (input$group_var != "None") {
group_levels <- unique(data[[input$group_var]])
color_map <- sapply(group_levels, function(level) {
color_value <- input[[paste0("color_", level)]]
# Validate the color value, default to black if invalid
if (!is.character(color_value) || !grepl("^#[0-9A-Fa-f]{6}$|^[a-zA-Z]+$", color_value)) {
color_value <- "black" # Fallback to black if invalid
}
return(color_value)
})
names(color_map) <- group_levels
return(color_map)
} else {
return(rep(input$fill_color, length(unique(data[[input$group_var]]))))
}
})
# Render the plot with overlaid plot types
output$boxPlot <- renderPlot({
data <- uploaded_data()
req(data, input$selected_var)
# Remove rows with missing values in selected variables
data <- data %>%
filter(!is.na(.data[[input$selected_var]])) # Remove NA from selected_var
# Ensure group_var is a factor
if (input$group_var != "None") {
data[[input$group_var]] <- as.factor(data[[input$group_var]])
}
# Create the base ggplot object
p <- ggplot(data, aes_string(x = input$group_var, y = input$selected_var, fill = input$group_var))
# Get color map from the reactive expression
color_map <- generate_color_map()
# Add selected plot types to the plot
if ("boxplot" %in% input$plot_type) {
p <- p + geom_boxplot(color = input$outline_color, alpha = 0.5, position = position_dodge(0.8))
}
if ("violin" %in% input$plot_type) {
p <- p + geom_violin(color = input$outline_color, alpha = 0.5, position = position_dodge(0.8))
}
if ("points" %in% input$plot_type) {
p <- p + geom_jitter(width = 0.2, color = input$outline_color, alpha = 0.5)
}
if ("histogram" %in% input$plot_type) {
p <- p + geom_histogram(binwidth = 1, color = input$outline_color, alpha = 0.5, position = "identity")
}
# Apply custom colors based on group levels (only if group_var is selected)
if (input$group_var != "None") {
p <- p + scale_fill_manual(values = color_map)
}
# Apply Faceting (if selected)
if (input$facet_var != "None") {
p <- p + facet_wrap(as.formula(paste("~", input$facet_var)))
}
# Apply labels and theme
p <- p + labs(
y = input$selected_var,
title = paste("Overlayed Plots of", input$selected_var),
x = input$group_var
) + match.fun(input$ggtheme)()
p
})
# Show ggplot2 code
output$ggplotCode <- renderText({
req(input$selected_var)
# Generate color map from the reactive expression
color_map <- generate_color_map()
# Generate code dynamically based on selected plot types
plot_types_code <- lapply(input$plot_type, function(type) {
switch(type,
"boxplot" = paste0(" geom_boxplot(color = \"", input$outline_color, "\", alpha = 0.5, position = position_dodge(0.8))"),
"violin" = paste0(" geom_violin(color = \"", input$outline_color, "\", alpha = 0.5, position = position_dodge(0.8))"),
"points" = paste0(" geom_jitter(width = 0.2, color = \"", input$outline_color, "\", alpha = 0.5)"),
"histogram" = paste0(" geom_histogram(binwidth = 1, color = \"", input$outline_color, "\", alpha = 0.5, position = \"identity\")")
)
})
plot_types_code <- paste(plot_types_code, collapse = " +\n")
facet_code <- if (input$facet_var != "None") {
paste0(" + facet_wrap(~ ", input$facet_var, ")")
} else {
""
}
color_map_code <- paste(" scale_fill_manual(values = c(", paste(names(color_map), "=", color_map, collapse = ", "), "))", sep = "")
code <- paste0(
"ggplot(data, aes(y = ", input$selected_var, ", x = ", input$group_var, ")) +\n",
plot_types_code, facet_code, "\n",
color_map_code, " +\n",
" labs(y = \"", input$selected_var, "\", title = \"Overlayed Plots of ", input$selected_var, "\") +\n",
" ", input$ggtheme, "()"
)
code
})
}
# Run the app
shinyApp(ui = ui, server = server)
