Wonderful Wednesday August 2025 (65)

Intercurrent events Wonderful Wednesdays

In clinical trials, intercurrent events are post-baseline occurrences that affect the interpretation or existence of outcome data. Visualisations help understand the possible impact of these events on the interpretation of the study results.

PSI VIS SIG https://www.psiweb.org/sigs-special-interest-groups/visualisation
08-13-2025

Intercurrent events

The Background:

Intercurrent event: event occurring after initiation of study intervention which either precludes the observation of the outcome variable or affects its measurement or interpretation.

Data set:

The Challenge:

Compare the two treatment arms, considering how intercurrent events might be handled.

A description of the challenge can also be found here.
A recording of the session can be found here.

Visualisation

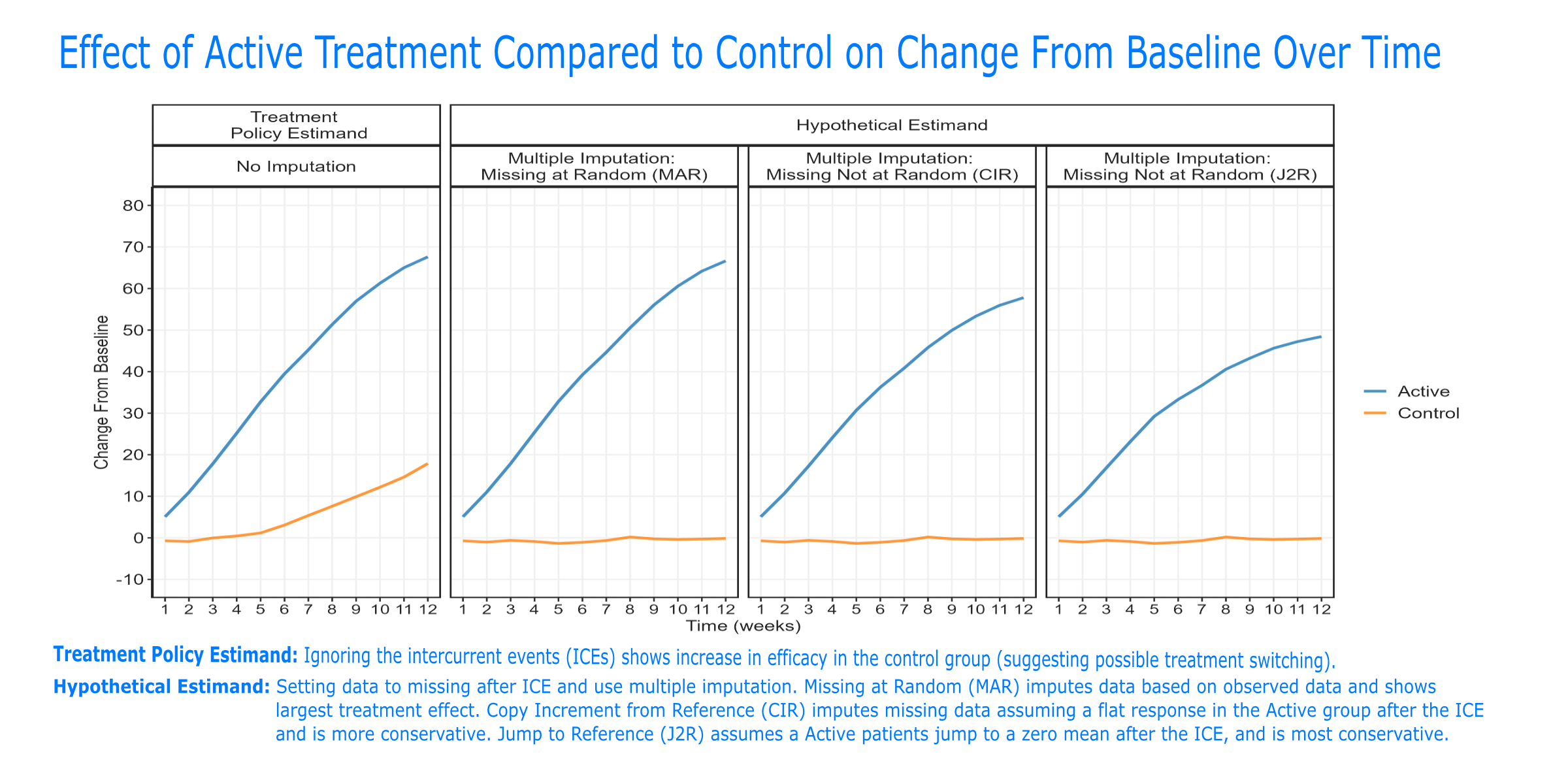

Example 1. Faceted line plot

pdf file

link to code

Example 2. Visualization side by side

link to code

Example 3. Using individual anker point


link to code

Code

Example 1. Faceted line plot

library(ggplot2)
library(tidyverse)
library(haven)
library(ggh4x)

data  <- read_sas("lsm_all.sas7bdat") %>%
  arrange(method, treat, avisitn) %>%
  mutate(
    facet_group = case_when(
      method == 1 ~ "Treatment \n Policy Estimand",
      TRUE ~ "Hypothetical Estimand"
    ),
    group_label = case_when(
      method == "1" ~ "No Imputation",
      method == "2" ~ "Multiple Imputation: \nMissing at Random (MAR)",
      method == "3" ~ "Multiple Imputation: \nMissing Not at Random (CIR)",
      method == "4" ~ "Multiple Imputation: \nMissing Not at Random (J2R)"
    )
  )

my_colors <- c("1" = "#1f77b4", "2" = "#ff7f0e")
my_labels <- c("1" = "Active", "2" = "Control")
my_panels <- c("1" = " ", "2" = "Missing at Random", "3" = "Copy Increment\n from Reference", "4" = "Jump to Reference", "5" = "Treatment Policy \n Estimand", "6" = "Hypothetical \n Estimand")
my_black <- "#252525"

data$method <- factor(data$method, levels = c(1,2,3,4))
data$facet_group <- factor(data$facet_group, levels = c("Treatment \n Policy Estimand", "Hypothetical Estimand"))
data$group_label <- factor(data$group_label, levels = c("No Imputation", "Multiple Imputation: \nMissing at Random (MAR)",  "Multiple Imputation: \nMissing Not at Random (CIR)", "Multiple Imputation: \nMissing Not at Random (J2R)"))

custom_labels <- c(
  "1" = "No Imputation",
  "2" = "Multiple Imputation: \nMissing at Random (MAR) ",
  "3" = "Multiple Imputation: \nCopy Increment ",
  "4" = "Multiple Imputation: \nJump to Reference "
)

plot <-  ggplot(data) +
  geom_line(aes(x = avisitn, y = Estimate, color=factor(treat)), linetype = 1, size=1, alpha=0.8) +
  # facet_grid(~ method, labeller = as_labeller(my_panels)) +
  facet_nested(~ facet_group + group_label) +
  scale_x_continuous("Time (weeks)", limits=c(1, 12), breaks = 0:12) +
  scale_y_continuous("Change From Baseline", limits=c(-10, 80), breaks=seq(-10, 80, by = 10)) +
  scale_color_manual(" ", values = my_colors, labels = my_labels) +
  theme(panel.background=element_rect(fill="white"),
        panel.grid.major=element_line(colour = "#f0f0f0",
                                      linewidth = 0.5,
                                      linetype = 1),
        panel.border=element_rect(fill = NA,
                                  colour = my_black,
                                      linewidth = 1,
                                      linetype = 1),
        strip.background = element_rect(fill = NA,
                                        colour = my_black,
                                        linewidth = 1,
                                        linetype = 1),
        strip.text = element_text(
          colour = my_black,
          size = 12),
        axis.line.y=element_line(colour = my_black,
                               linewidth = 0.5,
                               linetype = 1),
        axis.text.x=element_text(
          colour = my_black,
          size = 11),
        axis.text.y=element_text(
          colour = my_black,
          size = 12),
        axis.title=element_text(
          colour = my_black,
          size =12),
        legend.text=element_text(
          colour = my_black,
          size = 12))
ggsave(plot, filename = "lsm_panel.png", width = 12, height = 6)

And the SAS code to create lsm_all.sas7bdat

libname out ".";

* Download macros from https://www.lshtm.ac.uk/research/centres-projects-groups/missing-data#dia-missing-data;

%inc "Part1A_34.sas";
%inc "Part1B_47.sas";
%inc "Part2A_40.sas";
%inc "Part2B_31.sas";


PROC IMPORT OUT= WORK.a
            DATAFILE= "WWW_AUG2025.xlsx"
            DBMS=EXCEL REPLACE;
     RANGE="Sheet1$";
     GETNAMES=YES;
     MIXED=NO;
     SCANTEXT=YES;
     USEDATE=YES;
     SCANTIME=YES;
RUN;

proc sort data=a;
  by usubjid avisit;
run;

* Treatment policy - ignore ICEs;
data tp(where=(avisitn>0));
  set a(rename=(aval=avalc));
  by usubjid;
  length aval avisitn 8;
  aval=avalc;
  if trt="Treatment A" then treat=1;
  else treat=2;
  retain base;
  if first.usubjid then do;
    avisitn=0;
    base=aval;
    end;
  else avisitn=compress(avisit, "MONTH");
  chg=aval-base;
  keep usubjid treat avisitn base aval chg ice;
run;

ods output lsmeans=lsm_tp;
proc mixed data=tp;
  class usubjid avisitn treat;
  model chg = treat avisitn base treat*avisitn base*avisitn/ ddfm=kr;
  repeated avisitn / subject=usubjid type=UN;
  lsmeans treat*avisitn;
run;

* Hypothetical set data after ICE to missing;
data hypo;
  set tp;
  if ice="Y" then chg=.;
run;

* Missing at Random;
%part1A(jobname=MI, data=hypo, subject=usubjid, response=chg, time=avisitn, treat=treat, id=base);
%part1B(jobname=MI, ndraws=10, thin=100, seed=230815);
%part2A(inname=MI, jobname=MAR, method=MAR);
%part2B(jobname=MAR, seed=230815);

ods output lsmeans=lsm_mar;
proc mixed data=mar_datafull;
  by draw;
  class usubjid avisitn treat;
  model chg = treat avisitn base treat*avisitn base*avisitn/ ddfm=kr;
  repeated avisitn / subject=usubjid type=UN;
  lsmeans treat*avisitn;
run;

proc sort data=lsm_mar;
  by avisitn treat draw;
run;

ods output ParameterEstimates=lsm_mar2;
proc mianalyze parms=lsm_mar(rename=(draw=_imputation_));
  by avisitn treat;
  modeleffects avisitn*treat;
run;


* Jump to reference;
%part2A(inname=MI, jobname=J2R, method=J2R, ref=2);
%part2B(jobname=J2R, seed=230815);

ods output lsmeans=lsm_j2r;
proc mixed data=j2r_datafull;
  by draw;
  class usubjid avisitn treat;
  model chg = treat avisitn base treat*avisitn base*avisitn/ ddfm=kr;
  repeated avisitn / subject=usubjid type=UN;
  lsmeans treat*avisitn;
run;

proc sort data=lsm_j2r;
  by avisitn treat draw;
run;

ods output ParameterEstimates=lsm_j2r2;
proc mianalyze parms=lsm_j2r(rename=(draw=_imputation_));
  by avisitn treat;
  modeleffects avisitn*treat;
run;

* Copy increment to reference;
%part2A(inname=MI, jobname=CIR, method=CIR, ref=2);
%part2B(jobname=CIR, seed=230815);

ods output lsmeans=lsm_cir;
proc mixed data=cir_datafull;
  by draw;
  class usubjid avisitn treat;
  model chg = treat avisitn base treat*avisitn base*avisitn/ ddfm=kr;
  repeated avisitn / subject=usubjid type=UN;
  lsmeans treat*avisitn;
run;

proc sort data=lsm_cir;
  by avisitn treat draw;
run;

ods output ParameterEstimates=lsm_cir2;
proc mianalyze parms=lsm_cir(rename=(draw=_imputation_));
  by avisitn treat;
  modeleffects avisitn*treat;
run;

data out.lsm_all;
  set lsm_tp(in=a) lsm_mar2 (in=b) lsm_cir2(in=c) lsm_j2r2(in=d);
  select;
    when(a) method=1;
    when(b) method=2;
    when(c) method=3;
    when(d) method=4;
    otherwise;
    end;
  keep method treat avisitn estimate;
run;

Back to blog

Example 2. Visualization side by side

# Load required packages
library(tidyverse)
library(ggplot2)
library(readxl)
library(ggtext)
library(grid)
library(gridExtra)

# Load Data and Create Numeric Variable for x-axis
# Create numeric variable for AVAL
df <- read_excel("WWW_AUG2025.xlsx") %>%
  mutate(AVISITN = case_when(AVISIT=="BASE" ~ 0,
                             AVISIT!="BASE" ~
                               as.numeric(substring(AVISIT, nchar(AVISIT)-1))))

# Variable for Sample Size of Each Arm
N_A <- as.numeric(length(unique(df[df$TRT=="Treatment A",]$USUBJID)))
N_B <- as.numeric(length(unique(df[df$TRT=="Treatment B",]$USUBJID)))

# Mean Scores Over Time Ignoring ICEs
df_mean <- aggregate(as.numeric(df$AVAL),
                     by=list(df$TRT, df$AVISITN),
                     FUN=mean) %>%
  rename(Treatment = Group.1,
         Month = Group.2,
         Mean = x)

p1 <-
  ggplot(df_mean, aes(x=Month, y=Mean, colour=Treatment)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, 100),
                     expand = c(0, 0),
                     breaks = seq(0, 100, by = 10)) +
  scale_x_continuous(limits = c(0, 12.1),
                     expand = c(0, 0),
                     breaks = seq(0, 12, by = 1)) +
  labs(title = "Ignoring Intercurrent Events",
       subtitle = "Mean Scores Increase With Both Arms but are Higher for
       <span style = 'color: #F8766D;'>Treatment A</span>
       vs
       <span style = 'color: #619CFF;'>Treatment B</span>",
       caption = paste("Data analysed as observed \n (i.e.,",
       "data preceded by intercurrent events included as recorded). \n",
       "Treatment A: N =", N_A, "Treatment B: N =", N_B)) +
  theme_bw() +
  theme(panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        panel.grid.minor = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.major.y = element_line(linewidth = 0.5),
        axis.title.y = element_blank(),
        plot.title = element_markdown(size = 15, hjust = 0.5),
        plot.subtitle = element_markdown(size = 11,
                                         margin = margin(0, 0, 15, 0),
                                         hjust = 0.5),
        plot.caption = element_text(hjust = 0,
                                    margin = margin(15, 0, 0, 0)),
        legend.position = "none",
        plot.margin = margin(15, 5, 0, 0))

# Repeating with scores set to missing and imputed with LOCF following ICEs
df_locf <- df %>%
  group_by(USUBJID) %>%
  mutate(AVALlocf = case_when(ICE == "N" ~ as.numeric(AVAL))) %>%
  fill(AVALlocf, .direction = "down") %>%
  ungroup()

df_locf_mean <- aggregate(as.numeric(df_locf$AVALlocf),
                     by=list(df_locf$TRT, df_locf$AVISITN),
                     FUN=mean) %>%
                rename(Treatment = Group.1,
                       Month = Group.2,
                       Mean = x)

p2 <-
  ggplot(df_locf_mean, aes(x=Month, y=Mean, colour=Treatment)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(0, 100),
                     expand = c(0, 0),
                     breaks = seq(0, 100, by = 10)) +
  scale_x_continuous(limits = c(0, 12.1),
                     expand = c(0, 0),
                     breaks = seq(0, 12, by = 1)) +
  labs(title = paste("Imputing Post-Intercurrent Event Visits With LOCF"),
       subtitle = "Mean Scores Increase With
       <span style = 'color: #F8766D;'>Treatment A</span>
       But Not With
       <span style = 'color: #619CFF;'>Treatment B</span>",
       caption = paste("Data preceded by an intercurrent event set to missing",
                       "and imputed using \n last observation carried forward",
                       "(LOCF). \n",
                       "Treatment A: N =", N_A, "Treatment B: N =", N_B)) +
  theme_bw() +
  theme(panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        panel.grid.minor = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.major.y = element_line(linewidth = 0.5),
        axis.title.y = element_blank(),
        plot.title = element_markdown(size = 15, hjust = 0.5),
        plot.subtitle = element_markdown(size = 11,
                                         margin = margin(0, 0, 15, 0),
                                         hjust = 0.5),
        plot.caption = element_text(hjust = 0,
                                    margin = margin(15, 0, 0, 0)),
        legend.position = "none",
        plot.margin = margin(15, 0, 0, 5))


# Adding to plots to single plot with common title
meanplot <- grid.arrange(p1, p2, ncol=2,
                         top = textGrob("Mean VAS Scores by Visit",
                                        gp=gpar(fontsize=20)))

Back to blog

Example 3. Using individual anker point

# Load required packages
library(tidyverse)
library(ggplot2)
library(readxl)
library(ggtext)
library(grid)
library(gridExtra)

# Load Data and Create Numeric Variable for x-axis
# Create numeric variable for AVAL
df <- read_excel("WWW_AUG2025.xlsx") %>%
  mutate(AVISITN = case_when(AVISIT=="BASE" ~ 0,
                             AVISIT!="BASE" ~
                               as.numeric(substring(AVISIT, nchar(AVISIT)-1))))

# Variable for Sample Size of Each Arm
N_A <- as.numeric(length(unique(df[df$TRT=="Treatment A",]$USUBJID)))
N_B <- as.numeric(length(unique(df[df$TRT=="Treatment B",]$USUBJID)))



# For subjects experiencing an ICE computing mean score by visit
# relative to last visit prior to ICE

# Setting up data

df_ICEvis <- df %>%
  filter(ICE == "Y") %>%
  group_by(USUBJID) %>%
  slice_head() %>%
  ungroup() %>%
  mutate(nbasevis = AVISITN - 1) %>%
  select(USUBJID, nbasevis)

df_ICE <- df %>%
  inner_join(df_ICEvis, by = "USUBJID") %>%
  mutate(nvis = AVISITN - nbasevis)

df_ICE_mean <- aggregate(as.numeric(df_ICE$AVAL),
                     by=list(df_ICE$TRT, df_ICE$nvis),
                     FUN=mean) %>%
               rename(Treatment = Group.1,
                      RelMonth = Group.2,
                      Mean = x)

df_ICE_ns <- df_ICE %>%
  count(TRT, nvis) %>%
  mutate(ypos = case_when(TRT=="Treatment A" ~ -20,
                          TRT=="Treatment B" ~ -30)) %>%
  rename(Treatment = TRT)

# Number of subjects experiencing an ICE on each arm
# Variable for Sample Size of Each Arm
N_ICE_A <- as.numeric(length(
  unique(df[df$TRT=="Treatment A"&df$ICE=="Y",]$USUBJID)))
N_ICE_B <- as.numeric(length(
  unique(df[df$TRT=="Treatment B"&df$ICE=="Y",]$USUBJID)))

ggplot(df_ICE_mean, aes(x=RelMonth, y=Mean, colour=Treatment)) +
  geom_line() +
  geom_point() +
  scale_y_continuous(limits = c(-40, 110),
                     expand = c(0, 0),
                     breaks = seq(0, 100, by = 10)) +
  scale_x_continuous(limits = c(-12, 12),
                     expand = c(0, 0),
                     breaks = seq(-11, 11, by = 1)) +
  labs(title = paste("Mean VAS Score Relative to Intercurrent Event"),
       subtitle = "Following intercurrent events, subjects receiving
       <span style = 'color: #619CFF;'>Treatment B</span>
       eventually reach similar VAS scores to those reached after intercurrent
       events on
       <span style = 'color: #F8766D;'>Treatment A</span>",
       caption = paste("Data are analysed as observed. Scores are grouped",
                       "by number of visits relative to a subject's last",
                       "before they experience an intercurrent event. \n",
                       "Subjects experiencing an intercurrent event -",
                       "Treatment A: N = ", N_ICE_A,
                       "Treatment B: N = ", N_ICE_B),
       x = "Visit Relative to Last Before Intercurrent Event") +
  theme_bw() +
  theme(panel.border = element_blank(),
        axis.line = element_line(color = "black"),
        panel.grid.minor = element_blank(),
        panel.grid.major.x = element_blank(),
        panel.grid.major.y = element_line(linewidth = 0.5),
        axis.title.y = element_blank(),
        plot.title = element_markdown(size = 15),
        plot.subtitle = element_markdown(size = 11,
                                         margin = margin(0, 0, 15, 0)),
        plot.caption = element_text(hjust = 0,
                                    margin = margin(15, 0, 0, 0)),
        legend.position = "none") +
  geom_hline(yintercept = 0, color = "black") +
  geom_text(data = df_ICE_ns, aes(x = nvis, y = ypos, label = n)) +
  geom_segment(x = 0, xend = 0,
               y = 0, yend = 100,
               colour = "black",
               linetype = 2) +
  annotate("text", x = -10, y = -10,
           label = "Number of Observations") +
  annotate("text", x = 0, y = 105,
           label = "Last Observation Prior to Intercurrent Event")

Back to blog

Citation

For attribution, please cite this work as

SIG (2025, Aug. 13). VIS-SIG Blog: Wonderful Wednesday August 2025 (65). Retrieved from https://graphicsprinciples.github.io/posts/2025-08-13-wonderful-wednesday-august-2025/

BibTeX citation

@misc{sig2025wonderful,
  author = {SIG, PSI VIS},
  title = {VIS-SIG Blog: Wonderful Wednesday August 2025 (65)},
  url = {https://graphicsprinciples.github.io/posts/2025-08-13-wonderful-wednesday-august-2025/},
  year = {2025}
}
