Wonderful Wednesday March 2025 (60)

Benefit-Risk Forest plot Wonderful Wednesdays

The assessment of benefit and risk is in the centre of evaluating treatments.

PSI VIS SIG https://www.psiweb.org/sigs-special-interest-groups/visualisation
03-12-2025

Benefit-Risk profiles

The assessment of benefit-risk profiles is crucial in drug development and regulatory decision-making. Effective visualization of these profiles can greatly enhance understanding and communication among stakeholders. This challenge is inspired by the work presented in the paper: “Planning Benefit-Risk Assessments Using Visualizations” by Colopy MW, Gakava L, Chen C. Ther Innov Regul Sci. 2023 Nov;57(6):1123-1135. doi: 10.1007/s43441-023-00563-9. Epub 2023 Sep 8. PMID: 37682462.

In their paper, Colopy et al. emphasize the importance of proactive planning in benefit-risk assessments and propose various visualization techniques to facilitate this process. They present a series of visualizations that progress from analyzing the medical condition and current treatment options to assessing the investigational drug.

Data set:

For this challenge, you will be working with a data set (brdata.xlsx). The Excel spreadsheet contains two tabs:

The Challenge:

reate a visualization (or set of visualizations) using the provided dataset to effectively communicate the benefit-risk profiles of the drugs. Your visualization should aim to address one or more of the following aspects:

There are no strict restrictions on the type of visualization or the specific questions you choose to address. Your goal is to create a visualization that provides meaningful insights into the benefit-risk profiles and facilitates decision-making in drug development.

Reference:

Colopy MW, Gakava L, Chen C. Planning Benefit-Risk Assessments Using Visualizations. Ther Innov Regul Sci. 2023 Nov;57(6):1123-1135. doi: 10.1007/s43441-023-00563-9. Epub 2023 Sep 8. PMID: 37682462

A description of the challenge can also be found here.
A recording of the session can be found here.

Visualisations

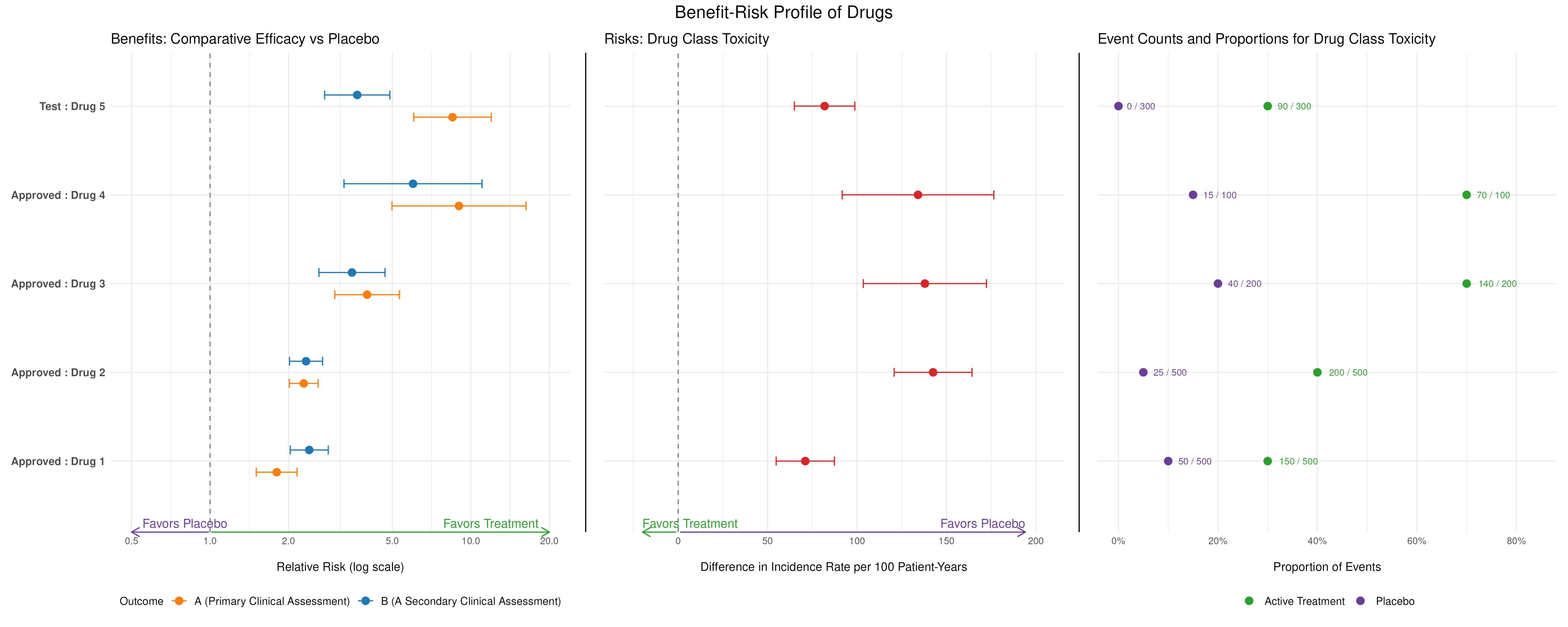

Example 1. Combined forest plot

link to code

Key Messaging

Efficacy Comparison (Left Panel)

Risk Assessment (Middle Panel)

Event Counts and Proportions (Right Panel)

Benefit-Risk Trade-off

Comparative Analysis

Decision Support

Uncertainty and Variability

Standardized Comparison

Color Coding

Comprehensive View

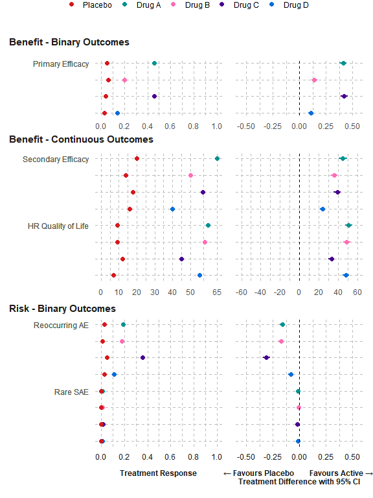

Example 2. Double dot plot (from the publication)

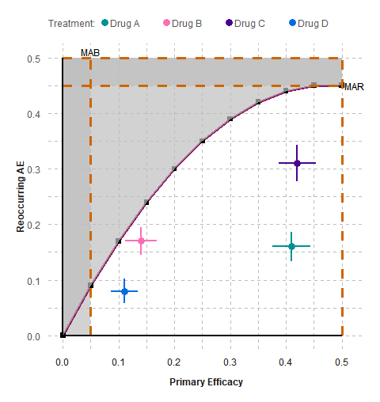

Example 3. Trade off plot

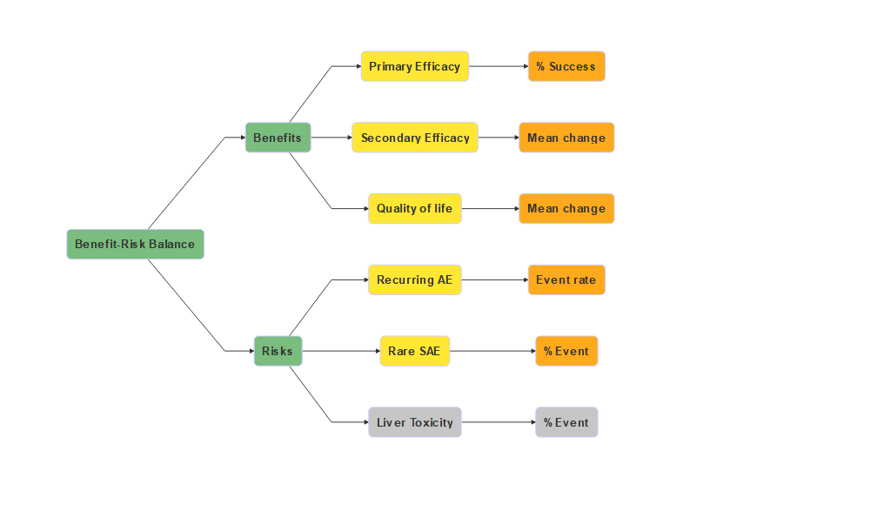

Example 4. Value tree

Code

Example 1. Combined forest plot

###########################
# Author: Lovemore Gakava #
###########################

# Load required libraries
library(ggplot2)
library(dplyr)
library(tidyr)
library(patchwork)
library(RColorBrewer)
library(readxl)
library(purrr)

# Read in data
brdata <- read_excel(paste0(here(), "/202503/brdata.xlsx"), sheet = "brdata")

# Rename columns based on the description tab
brdata <-  brdata %>%
  rename(
    Drug = Trt1,
    Placebo = Trt2,
    nSub1 = nSub1,
    N1 = N1,
    Prop1 = Prop1,
    nSub2 = nSub2,
    N2 = N2,
    Prop2 = Prop2,
    Diff_IncRate_LowerCI = Diff_IncRate_LowerCI,
    Diff_IncRate_UpperCI = Diff_IncRate_UpperCI,
    RelRisk_LowerCI = RelRisk_LowerCI,
    RelRisk_UpperCI = RelRisk_UpperCI
  )

# Convert relevant columns to numeric
numeric_cols <-  c("IncRate1", "IncRate2", "Diff_IncRate_LowerCI", "Diff_IncRate_UpperCI", "RelRisk_LowerCI", "RelRisk_UpperCI", "Prop1", "Prop2")

conversion_issues <- character(0)
brdata[numeric_cols] <- lapply(numeric_cols, function(col) {
  result <- tryCatch({
    as.numeric(gsub(",", "", as.character(brdata[[col]])))
  }, warning = function(w) {
    conversion_issues <<- c(conversion_issues, paste("Warning in", col, ":", conditionMessage(w)))
    as.numeric(gsub(",", "", as.character(brdata[[col]])))
  })
  result
})

if (length(conversion_issues) > 0) {
  cat("Conversion issues occurred:\n")
  cat(paste(conversion_issues, collapse = "\n"))
}

# Check for any remaining non-numeric values
non_numeric <-  sapply(brdata[numeric_cols], function(x) sum(is.na(x)))
print(non_numeric)

# Derive Diff_IncRate and RelRisk
brdata <- brdata %>%
  mutate(
    Diff_IncRate = IncRate1 - IncRate2,
    RelRisk = Prop1 / Prop2,
    Drug = paste(Drug_Status, ":", Drug) # Concatenate Drug_Status with Drug
  )

# Filter data for benefit and risk plots
benefit_data <-  brdata %>%
  filter(Factor == "Benefit", Grouped_Outcome %in% c("Clinical Assessment"), Filter == "None") %>%
  mutate(Drug = factor(Drug, levels = rev(unique(Drug))))

risk_data <-  brdata %>%
  filter(Factor == "Risk", Grouped_Outcome %in% c("Drug Class Toxicity"), Filter == "None") %>%
  mutate(Drug = factor(Drug, levels = rev(unique(Drug))))

# Define color palettes
benefit_colors <-  c("#FF7F0E", "#1F77B4") # Orange and Blue (complementary) for main benefit plot
active_color <- "#2CA02C" # Darker Green for Active Treatment (arrows and annotations)
placebo_color <- "#6A3D9A" # Darker Purple for Placebo (arrows and annotations)
risk_color <- "#D62728" # Red for risk plot

# Function to create benefit plot
create_benefit_plot <- function(data) {
  ggplot(data, aes(x = RelRisk, y = Drug, color = Outcome)) +
    geom_point(position = position_dodge(width = 0.5), size = 3) +
    geom_errorbarh(
      aes(xmin = RelRisk_LowerCI, xmax = RelRisk_UpperCI),
      position = position_dodge(width = 0.5),
      height = 0.2
    ) +
    geom_vline(xintercept = 1, linetype = "dashed", color = "gray50") +
    scale_x_log10(limits = c(0.5, 20), breaks = c(0.5, 1, 2, 5, 10, 20)) +
    scale_color_manual(values = benefit_colors) +
    labs(
      title = "Benefits: Comparative Efficacy vs Placebo",
      x = "\nRelative Risk (log scale)",
      y = NULL
    ) +
    theme_minimal() +
    theme(
      legend.position = "bottom",
      plot.margin = margin(b = 20),
      axis.text.y = element_text(face = "bold", size = 10),
      legend.text = element_text(size = 10),
      legend.title = element_text(size = 10)
    ) +
    coord_cartesian(clip = "off")
}

# Function to create risk plot
create_risk_plot <- function(data) {
  ggplot(data, aes(y = Drug)) +
    geom_point(aes(x = Diff_IncRate), size = 3, color = risk_color) +
    geom_errorbarh(
      aes(xmin = Diff_IncRate_LowerCI, xmax = Diff_IncRate_UpperCI),
      height = 0.1,
      linewidth = 0.5,
      color = risk_color
    ) +
    geom_vline(xintercept = 0, linetype = "dashed", color = "gray50") +
    scale_x_continuous(
      limits = c(
        min(data$Diff_IncRate_LowerCI, -20),
        max(data$Diff_IncRate_UpperCI) * 1.1
      ),
      expand = expansion(mult = c(0.1, 0.1))
    ) +
    labs(
      title = "Risks: Drug Class Toxicity",
      x = "\nDifference in Incidence Rate per 100 Patient-Years",
      y = NULL
    ) +
    theme_minimal() +
    theme(
      legend.position = "none",
      plot.margin = margin(b = 20),
      axis.text.y = element_text(face = "bold", size = 10)
    ) +
    coord_cartesian(clip = "off")
}

# Function to create count plot
create_count_plot <- function(data) {
  count_data <- data %>%
    select(Drug, nSub1, N1, Prop1, nSub2, N2, Prop2) %>%
    pivot_longer(
      cols = c(Prop1, Prop2),
      names_to = "Group",
      values_to = "Proportion"
    ) %>%
    mutate(
      Group = ifelse(Group == "Prop1", "Active Treatment", "Placebo"),
      Count = ifelse(
        Group == "Active Treatment",
        paste(nSub1, "/", N1),
        paste(nSub2, "/", N2)
      )
    )

  ggplot(count_data, aes(x = Proportion, y = Drug, color = Group)) +
    geom_point(size = 3) +
    geom_text(
      aes(label = Count),
      hjust = -0.3,
      vjust = 0.5,
      size = 3,
      show.legend = FALSE
    ) +
    scale_x_continuous(
      limits = c(0, max(count_data$Proportion) * 1.2),
      labels = scales::percent
    ) +
    scale_color_manual(
      values = setNames(
        c(active_color, placebo_color),
        c("Active Treatment", "Placebo")
      )
    ) +
    labs(
      title = "Event Counts and Proportions for Drug Class Toxicity",
      x = "\nProportion of Events",
      y = NULL
    ) +
    theme_minimal() +
    theme(
      legend.position = "bottom",
      axis.text.y = element_text(face = "bold", size = 10),
      legend.text = element_text(size = 10),
      legend.title = element_text(size = 10)
    ) +
    guides(color = guide_legend(title = NULL))
}

# Function to remove y-axis
remove_y_axis <- function(p) {
  p +
    theme(
      axis.text.y = element_blank(),
      axis.ticks.y = element_blank(),
      axis.title.y = element_blank()
    )
}

# Function to adjust y-axis
adjust_y_axis <- function(p, data) {
  p + scale_y_discrete(limits = unique(data$Drug))
}

# Function to add arrows and labels
add_arrows_and_labels <- function(
    p,
    x_left,
    x_right,
    y_pos,
    label_left,
    label_right,
    break_point,
    is_log_scale = FALSE,
    transparent = FALSE,
    reverse_colors = FALSE
) {
  text_offset <- if (is_log_scale) 0.1 else 0.05 * (x_right - x_left)

  if (is_log_scale) {
    gap <- 0.01 # Fixed small gap for log scale
    left_end <- break_point / (1 + gap)
    right_start <- break_point * (1 + gap)
  } else {
    gap <- 0.005 * (x_right - x_left)
    left_end <- break_point - gap
    right_start <- break_point + gap
  }

  if (reverse_colors) {
    arrow_color_left <- if (transparent) alpha(active_color, 0) else
      active_color
    arrow_color_right <- if (transparent) alpha(placebo_color, 0) else
      placebo_color
    text_color_left <- active_color
    text_color_right <- placebo_color
  } else {
    arrow_color_left <- if (transparent) alpha(placebo_color, 0) else
      placebo_color
    arrow_color_right <- if (transparent) alpha(active_color, 0) else
      active_color
    text_color_left <- placebo_color
    text_color_right <- active_color
  }

  p +
    # Left arrow
    annotate(
      "segment",
      x = x_left,
      xend = left_end,
      y = y_pos,
      yend = y_pos,
      arrow = arrow(length = unit(0.3, "cm"), ends = "first"),
      color = arrow_color_left
    ) +
    # Right arrow
    annotate(
      "segment",
      x = right_start,
      xend = x_right,
      y = y_pos,
      yend = y_pos,
      arrow = arrow(length = unit(0.3, "cm"), ends = "last"),
      color = arrow_color_right
    ) +
    # Labels
    annotate(
      "text",
      x = x_left * (if (is_log_scale) 1.1 else 1),
      y = y_pos + 0.1,
      label = label_left,
      hjust = 0,
      color = text_color_left,
      size = 4
    ) +
    annotate(
      "text",
      x = x_right / (if (is_log_scale) 1.1 else 1),
      y = y_pos + 0.1,
      label = label_right,
      hjust = 1,
      color = text_color_right,
      size = 4
    )
}

# Create and modify plots
benefit_plot <-  create_benefit_plot(benefit_data) %>%
  add_arrows_and_labels(
    0.5,
    20,
    0.2,
    "Favors Placebo",
    "Favors Treatment",
    break_point = 1,
    is_log_scale = TRUE
  )

risk_plot <-  create_risk_plot(risk_data) %>%
  remove_y_axis() %>%
  add_arrows_and_labels(
    min(risk_data$Diff_IncRate_LowerCI, -20),
    max(risk_data$Diff_IncRate_UpperCI) * 1.1,
    0.2,
    "Favors Treatment",
    "Favors Placebo",
    break_point = 0,
    is_log_scale = FALSE,
    reverse_colors = TRUE
  )

count_plot <-  create_count_plot(risk_data) %>%
  remove_y_axis() %>%
  # Add phantom line and annotation for alignment (now transparent)
  add_arrows_and_labels(
    0,
    0,
    0.2,
    "",
    "",
    break_point = 0.5,
    is_log_scale = FALSE,
    transparent = TRUE
  ) +
  theme(
    plot.margin = margin(t = 20, r = 5.5, b = 5.5, l = 5.5, unit = "pt")
  )

# Adjust y-axis for all plots
plots <-  list(benefit_plot, risk_plot, count_plot) %>%
  map(~ adjust_y_axis(., benefit_data))

# Function to create a thin vertical line plot with padding
create_separator <- function() {
  ggplot() +
    geom_vline(xintercept = 0, color = "black", size = 0.5) +
    theme_void() +
    theme(
      plot.margin = margin(0, 10, 0, 10, "pt"),
      panel.border = element_rect(color = NA, fill = NA)
    )
}

# Create separator plots
separator1 <- create_separator()
separator2 <- create_separator()

# Combine the plots with separators
combined_plot <- (plots[[1]] | separator1 | plots[[2]] | separator2 | plots[[3]]) +
  plot_layout(ncol = 5, widths = c(1, 0.02, 1, 0.02, 1)) +
  plot_annotation(
    title = "Benefit-Risk Profile of Drugs",
    theme = theme(
      plot.title = element_text(hjust = 0.5, size = 16),
      plot.margin = margin(10, 10, 10, 10)
    )
  ) &
  theme(
    plot.margin = margin(5, 5, 5, 5),
    legend.text = element_text(size = 10),
    legend.title = element_text(size = 10)
  )

# Save the plot
ggsave(
  paste0(here(), "/202503/benefit_risk_plot_nn.png"),
  combined_plot,
  width = 20,
  height = 8,
  dpi = 300
)

# Print the combined plot
print(combined_plot)
